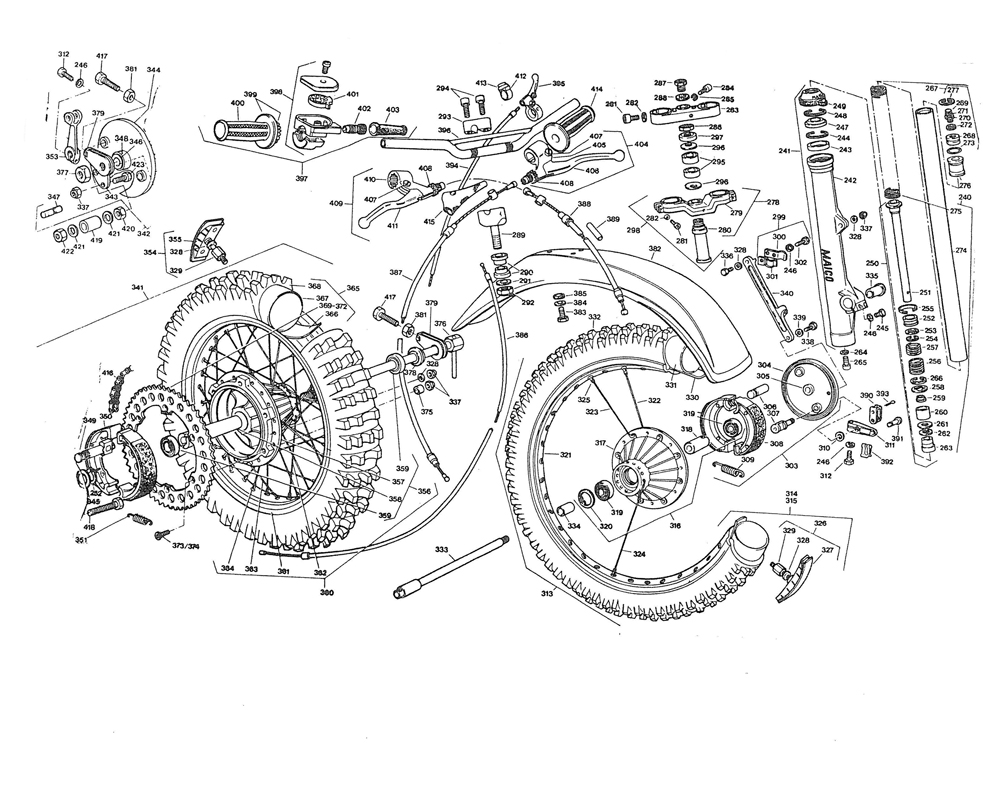

| Picture | Part | Description | MC |
MC |
| No. | No. | 250 |
490 |
|
Quantity |
||||
| 240 | 6636 | Fork leg CPL | 2 |
2 |
| 241 | 6631 | Fork slider cpl | 2 |
2 |
| 242 | 6630 | Fork slider | 2 |
2 |
| 243 | 6436 | Guide bush | 2 |
2 |
| 244 | 6437 | Circlip SB 46 | 2 |
2 |
| 245 | 1571 | Hexagon screw M 6x30 Din 831 | 4 |
4 |
| 246 | 1510 | Spring ring B 6 Din 128 | 7 |
7 |
| 247 | 6439 | Seal | 2 |
2 |
| 248 | 6440 | Circlip SB 55x1.5 | 2 |
2 |
| 249 | 6441 | Wiper | 2 |
2 |
| 250 | 6635 | Damper cpl | 2 |
2 |
| 251 | 6632 | Damper tube | 2 |
2 |
| 252 | 6447 | Damper piston | 2 |
2 |
| 253 | 6448 | Washer 23.9x28.2x0.9 | 2 |
2 |
| 254 | 6449 | Circlip SW 24 | 2 |
2 |
| 255 | 6450 | Piston ring | 2 |
2 |
| 256 | 6452 | Stop spring soft | 2 |
2 |
| 257 | 6460 | Stop spring hard | 2 |
2 |
| 258 | 6426 | Valve seat | 2 |
2 |
| 259 | 6454 | Valve | 2 |
2 |
| 260 | 6427 | Damper insert | 2 |
2 |
| 261 | 6456 | Washer 29.9x36.7x0.2 | 2 |
2 |
| 262 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
| 263 | 6458 | Bush for damper | 2 |
2 |
| 264 | 6459 | Seal ring A 10x15 Din 7603 | 2 |
2 |
| 265 | 1655 | Inner hexagon screw M 10x25 Din 6912 | 2 |
2 |
| 266 | 6428 | Circlip SB 38 | 2 |
2 |
| 267 | 6429 | Seal cpl | 2 |
2 |
| 268 | 6431 | seal | 2 |
2 |
| 269 | 2184 | Valve cpl | 2 |
2 |
| 270 | 2186 | Valve insert | 2 |
2 |
| 271 | 2187 | Valve cap | 2 |
2 |
| 272 | 277 | Seal ring A 8x11.5 Din 7603 | 2 |
2 |
| 273 | 6464 | O-ring 29.74x3.53 | 2 |
2 |
| 274 | 6637 | Fork tube | 2 |
2 |
| 275 | 6629 | Fork spring | 2 |
2 |
| 276 | 6628 | Spacer tube | 2 |
2 |
| 277 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
| 278 | 6639 | Lower cross head cpl | 1 |
1 |
| 279 | 6640 | Lower cross head | 1 |
1 |
| 280 | 6471 | Steering tube | 1 |
1 |
| 281 | 3270 | Inner hexagon screw M 10x40 Din 6912 | 4 |
4 |
| 282 | 1512 | Spring ring B 10 Din 128 | 4 |
4 |
| 283 | 6473 | Upper cross head | 1 |
1 |
| 284 | 1648 | Inner hexagon screw M 8x40 Din 912 | 1 |
1 |
| 285 | 1511 | Spring ring B 8 Din 128 | 1 |
1 |
| 286 | 6474 | Steering head nut | 1 |
1 |
| 287 | 6475 | Screw plug | 1 |
1 |
| 288 | 6476 | Washer B 23 Din 125 | 1 |
1 |
| 289 | 6477 | Handle bar clamp lower | 2 |
2 |
| 290 | 15 | Rubber buffer | 4 |
4 |
| 291 | 6642 | Washer | 2 |
2 |
| 291 | 1693 | Nut NM 10 Din 980 | 2 |
2 |
| 293 | 6478 | Upper handle bar clamp | 2 |
2 |
| 294 | 1628 | Inner hexagon screw M 8x25 Din 6912 | 1 |
1 |
| 295 | 3297 | Tapered roller bearing | 4 |
4 |
| 296 | 3296 | Nilos ring | 2 |
2 |
| 297 | 6480 | Cover plate | 1 |
1 |
| 298 | 6641 | Fork cpl | 1 |
1 |
| 299 | 6257 | Cable holder cpl | 1 |
1 |
| 300 | 6258 | Cable clamp | 1 |
1 |
| 301 | 6255 | Cable clamp | 1 |
1 |
| 302 | 1565 | Hexagon screw M 6x12 Din 933 | 1 |
1 |
| 303 | 6144 | Front brake plate cpl | 1 |
1 |
| 304 | 2236 | Front brake plate with bush | 1 |
1 |
| 305 | 2238 | Brake plate bush | 1 |
1 |
| 306 | 2418 | Pivot bolt | 1 |
1 |
| 307 | 2419 | Brake toggle | 1 |
1 |
| 308 | 1322 | Brake shoe | 2 |
2 |
| 309 | 6148 | Spring for brake shoe | 2 |
2 |
| 310 | 187 | Rubber washer | 1 |
1 |
| 311 | 6145 | Front brake lever | 1 |
1 |
| 312 | 1570 | Hexagon screw M 6x25 Din 933 | 2 |
2 |
| 313 | 6678 | Front wheel cpl | 1 |
1 |
| 314 | 6677 | Front wheel with tire | 1 |
1 |
| 315 | 6672 | Front wheel | 1 |
1 |
| 316 | 6671 | Front hub cpl | 1 |
1 |
| 317 | 6670 | Front hub | 1 |
1 |
| 318 | 2428 | Spacer tube for front hub | 1 |
1 |
| 319 | 2427 | Ball bearing 6202 RS Din 625 | 2 |
2 |
| 320 | 1853 | Securing ring 37x1.5 Din 472 | 1 |
1 |
| 321 | 6673 | Akront rim 21" | 1 |
1 |
| 322 | 6674 | Front spoke large flange outer | 9 |
9 |
| 323 | 6675 | Front spoke large flange inner | 9 |
9 |
| 324 | 6676 | Front spoke small flange | 18 |
18 |
| 325 | 2242 | Nipple 4.5 M 4 | 36 |
36 |
| 326 | 168 | Tire holder front cpl | 1 |
1 |
| 327 | 2568 | Tire holder plate | 1 |
1 |
| 328 | 1734 | Washer B 8,4 Din 125 | 8 |
8 |
| 329 | 289 | Nut for tire holder | 2 |
2 |
| 330 | 2001 | Rim strap 21" | 1 |
1 |
| 331 | 2002 | Tube 3.00x21" | 1 |
1 |
| 332 | 2003 | Tire 3.00x21" | 1 |
1 |
| 333 | 2247 | Knockout spindle | 1 |
1 |
| 334 | 2250 | Spacer bush | 1 |
1 |
| 335 | 2430 | Bush | 1 |
1 |
| 336 | 1594 | Hexagon screw M 8x40 Din 931 | 1 |
1 |
| 337 | 1692 | Nut NM 8 Din 980 | 11 |
11 |
| 338 | 1589 | Hexagon screw M 8x20 Din 933 | 1 |
1 |
| 339 | 1714 | Spring washer B 8 Din 137 | 1 |
1 |
| 340 | 6147 | Brake plate front | 1 |
1 |
| 341 | 7513 | Rear wheel cpl | 1 |
1 |
| 342 | 7507 | Brake plate cpl | 1 |
1 |
| 343 | 7526 | Cover plate | 1 |
1 |
| 344 | 7564 | Brake plate | 1 |
1 |
| 346 | 7506 | Bush | 1 |
1 |
| 347 | 7505 | Pivot bolt | 1 |
1 |
| 348 | 7508 | Bush | 1 |
1 |
| 349 | 7502 | Brake toggle | 1 |
1 |
| 350 | 188 | Brake shoe cpl | 2 |
2 |
| 351 | 6148 | Tension spring for brake shoe | 2 |
2 |
| 352 | 1849 | Securing ring 25x1.2 Din 471 | 1 |
1 |
| 353 | 2843 | Rear brake lever | 1 |
1 |
| 354 | 2434 | Tire holder rear cpl | 1 |
1 |
| 355 | 2567 | Tire holder plate | 1 |
1 |
| 356 | 7510 | Rear hub cpl | 1 |
1 |
| 357 | 7500 | Rear hub | 1 |
1 |
| 358 | 3276 | Spacer tube rear | 1 |
1 |
| 359 | 205 | Ball bearing 6303 2 RS C 3 | 2 |
2 |
| 360 | 7511 | Rear wheel | 1 |
1 |
| 361 | 6686 | Akront rim 18" | 1 |
1 |
| 362 | 6687 | Spoke small flange | 18 |
18 |
| 363 | 6688 | Spoke large flange | 18 |
18 |
| 364 | 2408 | Nipple M 4.5 | 36 |
36 |
| 365 | 7512 | Rear wheel with tire | 1 |
1 |
| 366 | 2005 | Rim strap 18" | 1 |
1 |
| 367 | 2015 | Tire 4.50x18" | 1 |
1 |
| 368 | 2008 | Tube 4.50x18 | 1 |
1 |
| 369 | 7523 | Sprocket 50T Optional | nB |
nB |
| 370 | 7522 | Sprocket 52T Optional | nB |
nB |
| 371 | 7521 | Sprocket 54T Optional | nB |
nB |
| 372 | 7514 | Sprocket 56TOptional | nB |
nB |
| 373 | 1880 | Rear sprocket bolt M 8x50 Din 7991 | 3 |
3 |
| 374 | 1803 | Rear sprocket bolt M 8x40 Din 7991 | 3 |
3 |
| 375 | 6696 | Bush for sprocket bolt | 3 |
3 |
| 376 | 7519 | Knockout spindle cpl | 1 |
1 |
| 377 | 1709 | Securing ring NM 16x1.5 Din 933 | 1 |
1 |
| 378 | 3196 | Spacer ring | 1 |
1 |
| 379 | 7518 | Chain tensioner cpl | 2 |
2 |
| 380 | 7515 | Nilos ring | 1 |
1 |
| 381 | 1670 | Hexagon screw M 8 Din 934 | 4 |
4 |
| 382 | 6493 | Front fender | 1 |
1 |
| 383 | 1569 | Hexagon screw M 6x20 Din 933 | 4 |
4 |
| 384 | 1750 | Washer 6,4 Din 9021 | 4 |
4 |
| 385 | 2708 | Rubber washer | 4 |
4 |
| 386 | 2456 | Throttle cable | 1 |
1 |
| 387 | 6150 | Clutch cable cpl | 1 |
1 |
| 388 | 6530 | Brake cable | 1 |
1 |
| 389 | 2275 | Isolating hose B 8x0.7 Din 40621 | X |
X |
| 390 | 6151 | Cable holder | 1 |
1 |
| 391 | 6152 | Bolt | 1 |
1 |
| 392 | 6153 | Clip for bolt | 1 |
1 |
| 393 | 1857 | Split pin 3.2x25 Din 94 | 1 |
1 |
| 394 | 315 | Decompressor cable | - |
1 |
| 395 | 148 | Lever for decompressor cpl | - |
1 |
| 396 | 6668 | Clamp for handle bar | 1 |
1 |
| 397 | 6280 | Throttle grip | 1 |
1 |
| 398 | 6283 | Throttle housing cpl (with cover & screws) | 1 |
1 |
| 399 | 6282 | Grip for cover | 1 |
1 |
| 400 | 2148 | cover | 1 |
1 |
| 401 | 6284 | Cam | 1 |
1 |
| 402 | 2211 | Support | 1 |
1 |
| 403 | 2212 | Rubber cap | 2 |
2 |
| 404 | 2215 | Clutch lever cpl | 2 |
2 |
| 405 | 2213 | Hinge for clutch lever | 1 |
1 |
| 406 | 2216 | Hand clutch lever | 1 |
1 |
| 407 | 133 | Screw with nut | 2 |
2 |
| 408 | 212 | adjusting screw with nut | 2 |
2 |
| 409 | 2218 | Brake lever cpl | 1 |
1 |
| 410 | 2217 | Hinge for brake lever with screw | 1 |
1 |
| 411 | 2219 | Brake hand lever | 1 |
1 |
| 412 | 2220 | Kill button with rubber cap | 1 |
1 |
| 413 | 2221 | Rubber cap | 1 |
1 |
| 414 | 2512 | Rubber grip | 1 |
1 |
| 415 | 2204 | Lever cover | 2 |
2 |
| 416 | 6744 | Chain | 1 |
1 |
| 417 | 1515 | Hexagon screw M 8x25 Din 933 | 2 |
2 |
| 418 | 1619 | Hexagon screw M 10x50 Din 933 | 1 |
1 |
| 419 | 7540 | Bush short | 1 |
1 |
| 420 | 1674 | Hexagon nut M 10 Din 934 | 1 |
1 |
| 421 | 1735 | Washer B 10.5 Din 125 | 2 |
2 |
| 422 | 1693 | Securing nut M 10 Din 980 | 1 |
1 |
| 423 | 1589 | Hexagon screw M 8x20 Din 933 | 3 |
3 |
| X = | Yard goods | |||
