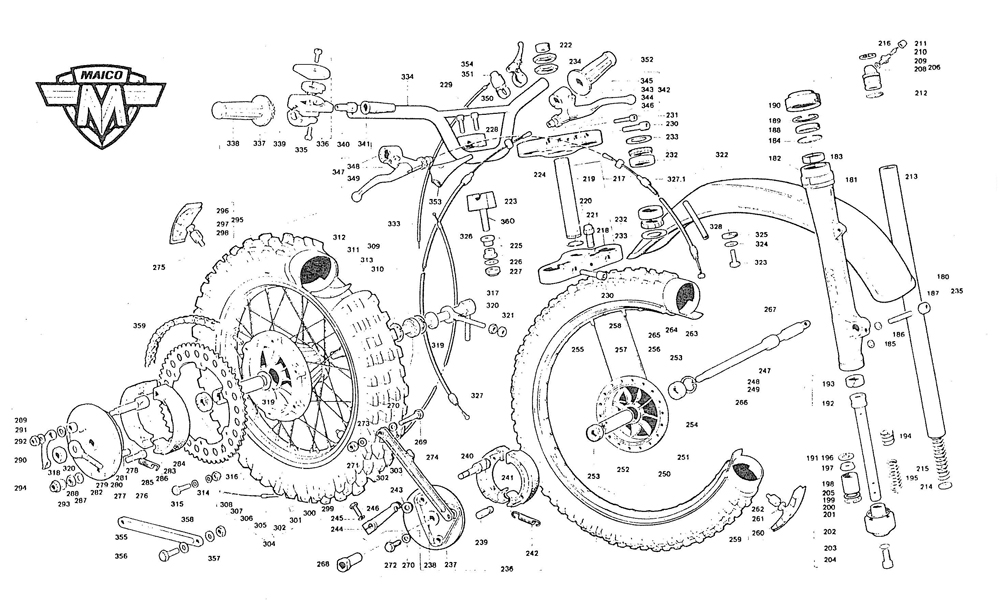

79chassis



Picture Part Description Quantity
No. No.
250
400
440
180 6221 Fork leg cpl
2
2
2
181 2170 Slider tube
2
2
2
182 2166 Slider tube with bush
2
2
2
183 2168 Guide bush for main tube
2
2
2
184 2169 Circlip for fork
2
2
2
185 1734 Washer B 8,4 Din 125
4
4
4
186 1783 Stud M 6x30 Din 939
2
2
2
187 1692 Self locking nut NM 8 Din 980
2
2
2
188 2171 Sealing ring RP 37.8x48x6
2
2
2
189 2172 Circlip
2
2
2
190 3907 Sealing ring
2
2
2
191 2178 Damper cpl
2
2
2
192 2176 Damper tube
2
2
2
193 3789 Piston ring for damper
2
2
2
194 2179 Counter spring hard
2
2
2
195 2181 Counter spring soft
2
2
2
196 3369 Valve seat
2
2
2
197 3368 Valve
2
2
2
198 3367 Damper insert
2
2
2
199 3366 Retaining ring 34x1.5 Din 472
2
2
2
200 2182 Bush for damper tube
2
2
2
201 1902 O-ring
2
2
2
202 2183 Damper plug
2
2
2
203 430 Sealing ring A 8x14 Din 7603
2
2
2
204 1653 Socket screw M 8x20 Din 912
2
2
2
205 3777 Spacer washer 0.3
3778 Spacer washer 0.5
2
2
2
206 2188 Fork plug cpl
2
2
2
207
2
2
2
208 277 Sealing ring A 8x11.5 Din 7603
2
2
2
209 2185 Air valve body
2
2
2
210 2186 Air valve insert
2
2
2
211 2187 Air valve cap
2
2
2
212 6220 O-ring
2
2
2
213 3790 Main tube
2
2
2
214 2193 O-ring
1
1
1
215 2194 Fork spring
2
2
2
216 3366 Retaining ring 34x1.5 Din 472
2
2
2
217 3371 Lower cross head cpl
1
1
1
218 3372 Lower cross head
1
1
1
219 3373 Steering tube
1
1
1
220 3375 Circlip A 26 Din 7993
1
1
1
221 226 Locking bolt
2
2
2
222 5003 Plug for steering tube
1
1
1
223 290 Lower handlebar clamp
2
2
2
224 3381 Upper cross head
1
1
1
225 15 Rubber buffer
4
4
4
226 1758 Washer
2
2
2
227 1693 Self locking nut NM 10 Din 980
2
2
2
228 88 Upper handlebar clamp
2
2
2
229 1646 Socket screw M 8x30 Din 912
4
4
4
230 1657 Socket screw M 10x40 Din 912
4
4
4
231 1650 Socket screw M 8x60 Din 912
2
2
2
232 3297 Roller bearing L44649/610
2
2
2
233 3296 Nilos ring
2
2
2
234 3533 Hexagon nut
2
2
2
235 6223 Front fork cpl
1
1
1
236 2239 Frone brake plate cpl
1
1
1
237 2236 Front brake plate with bush
1
1
1
238 2238 Bush for brake plate
1
1
1
239 2418 Pivot bolt
1
1
1
240 2419 Brake toggle
1
1
1
241 1322 Brake shoe
2
2
2
242 1323 Tension spring
2
2
2
243 187 Rubber washer
1
1
1
244 1324 Front brake lever
1
1
1
245 1704 Spring washer B 6 Din 127
1
1
1
246 1569 Hexagon screw M 6x20 Din 933
1
1
1
247 6146 Front wheel cpl
1
1
1
248 2240 Front wheel with tire
1
1
1
249 2235 Front wheel bare
1
1
1
5622 Front wheel bare
1
1
1
250 2234 Front brake drum cpl
1
1
1
251 2233 Front brake drum
1
1
1
252 2428 Spacer tube
2
2
2
253 2427 Ball bearing 6202
1
1
1
254 1853 Retainer ring
1
1
1
255 3497 Front rim
18
18
18
256 2432 Spoke short
18
18
18
257 2433 Spoke long
36
36
36
258 2242 Spoke nipple 4.5/M 4
1
1
1
259 168 Front tire holder cpl
1
1
1
260 2568 Front tire holder plate
1
1
1
261 1734 Washer B 8,4 Din 125
1
1
1
262 289 Nut for tire holder
1
1
1
263 2001 Rim strap 21"
1
1
1
264 2002 Inner tube 3.00x21"
1
1
1
265 2003 Front tire 3.00x21"
1
1
1
266 2242 Front axle
1
1
1
267 2250 Spacer bush
1
1
1
268 2430 Threaded bush
1
1
1
269 1594 Hexagon screw M 8x40 Din 931
1
1
1
270 1734 Washer B 8,4 Din 125
2
2
2
271 1692 Self locking nut NM 8 Din 980
1
1
1
272 1589 Hexagon screw A 18x20 Din 933
1
1
1
273 1714 Spring washer B 8 Din 137
1
1
1
274 2424 Front brake arm
4
4
4
275 6290 Rear wheel cpl
1
1
1
276 3186 Rear brake plate cpl
1
1
1
277 3045 Rear brake plate with parts
1
1
1
278 3187 Rear brake plate
1
1
1
279 183 Spacer bush
2
2
2
280 3188 Cover plate
1
1
1
281 3189 Pivot bolt
1
1
1
282 1901 Oval head nail 3x8 Din 1476
1
1
1
283 151 Brake toggle
1
1
1
284 188 Brake shoe
2
2
2
285 6148 Tension spring
2
2
2
286 3270 Socket screw M 10x40 Din 6912
1
1
1
287 1715 Spring washer
1
1
1
288 1674 Hexagon nut M 10 Din 934
1
1
1
289 187 Rubber washer
1
1
1
290 3190 Rear brake lever
1
1
1
291 1734 Washer B 8,4 Din 125
2
2
2
292 1692 Self locking nut NM 8 Din 980
1
1
1
293 1735 Washer B 10.5 Din 125
1
1
1
294 1693 Self locking nut NM 10 Din 980
1
1
1
295 2434 Rear tire holder
1
1
1
296 2567 Rear tire holder plate
1
1
1
297 1734 Washer B 8,4 Din 125
1
1
1
298 289 Nut for tire holder
1
1
1
299 3875 Rear brake drum cpl
1
1
1
300 3868 Rear brake drum
1
1
1
301 3872 Spacer bush rear cpl
1
1
1
302 205 Ball bearing 6303 2 RS C3
2
2
2
303 1852 Retaining ring 47x1.75
2
2
2
304 3876 Rear wheel bare
1
1
1
305 2405 Rear rim
1
1
1
306 2406 Spoke short
18
18
18
307 2407 Spoke long
18
18
18
308 2408 Spoke nipple
36
36
36
309 3343 Rear wheel with tire
1
1
1
310 2005 Rim strap 18"
1
1
1
311 2015 Inner tube 4.50x18'
1
1
1
312 2008 Tire 4.50x18"
1
1
1
313 3227 Rear wheel sprocket 56 T
1
1
1
2200 Rear wheel sprocket 54 T
-
-
-
314 1713 Spring washer B 7 Din 137
16
16
16
315 3280 Hexagon screw M 7x40 Din 933
6
6
6
316 1691 Self locking nut NM 7 Din 980
6
6
6
317 3277 Rear axle cpl
1
1
1
318 1709 Self locking nut NM 7 Din 980
1
1
1
319 3880 Spacer ring
1
1
1
320 223 Chain tensioner
2
2
2
321 1670 Hexagon nut M 8 Din 934
4
4
4
322 6142 Front fender
1
1
1
323 1569 Hexagon scrwe M 6x20 Din 933
4
4
4
324 1750 Washer 6,4 Din 9021
4
4
4
325 2708 Rubber washer
4
4
4
326 2456 Throttle cable
1
1
1
327 6150 Clutch cable
1
1
1
327.1 486 Brake cable
1
1
1
328 2275 Isolation hose B 8x0.7 Din 40621
*
*
*
333 315 Decompression cable
-
1
1
334 2230 Handlebar, high black
1
1
1
335 6261 Throttle grip cpl
1
1
1
336 6283 Throttle grip housing
1
1
1
337 6285 Throttle tube with cover
1
1
1
338 2148 Throttle grip, rubber
1
1
1
339 6284 Throttle cam
1
1
1
340 2211 Throttle stop screw
1
1
1
341 2212 Rubber sleeve for stop screw
1
1
1
342 2215 Hand clutch lever cpl
1
1
1
343 2213 Hinge for hand clutch lever
1
1
1
344 2216 Hand clutch lever
1
1
1
345 133 Lever screw with nut
2
2
2
346 212 Adjusting screw with nut
2
2
2
347 2218 Hand brake lever cpl
1
1
1
348 2217 Hinge for hand brake lever with screw
1
1
1
349 2219 Hand brake lever
1
1
1
350 2220 Kill button cpl
1
1
1
351 2221 Rubber cap
1
1
1
352 2512 Rubber grip
1
1
1
353 3166 Lever cover
2
2
2
354 148 Decompression lever cpl
-
1
1
355 1978 Rear brake torque arm
1
1
1
356 1591 Hexagon screw M 8x25 Din 933
1
1
1
357 1734 Washer B 8,4 Din 125
2
2
2
358 1692 Self locking nut NM 8 Din 980
1
1
1
359 2281 Rear chain
1
1
1
360 1661 Socket screw M 10x60 Din 6912
2
2
2
