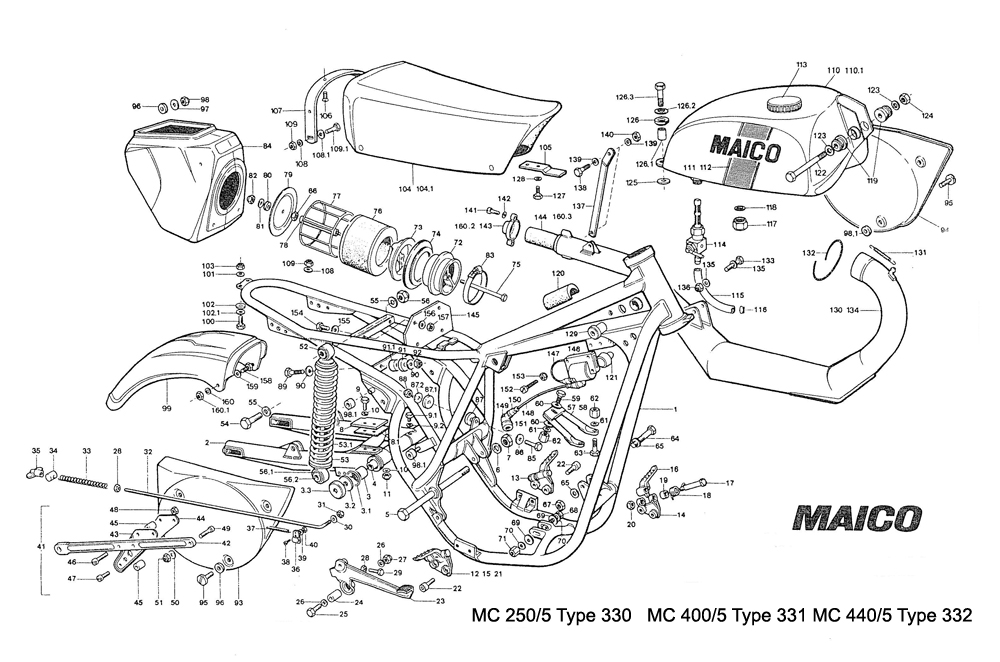

77frame



Picture Part Description Quantity
No. No.
250
400
440
1 5 Frame cpl
1
1
1
2 3917 Swing arm cpl
1
1
1
3 3932 Needle cage 2030
2
2
2
3.1 80 O ring
2
2
2
3.2 5008 Washer
2
2
2
3.3 3934 Cover plate for swing arm
2
2
2
4 3933 Spacer bush for swing arm
2
2
2
5 3937 Swing arm spindle
1
1
1
6 1718 Washer
1
1
1
7 5011 Nut for swing arm spindle
1
1
1
M 24 x 2.5 Din 980
8 3936 Swing arm plastic pad
1
1
1
8.1 3927 Cover plate
1
1
1
9 1567 Hexagon screw M 6x16 Din 933
2
2
2
9.1 1554 Hexagon screw M 6x6 Din 933
1
1
1
9.2 407 Sealing ring A x 10 Din 7603
1
1
1
10 1732 Washer B 6.4 Din 125
4
4
4
11 1690 Hexagon nut NM 6 Din 980
2
2
2
12 3779 Foot rest right hand cpl
1
1
1
13 3780 Foot rest left hand cpl
1
1
1
14 3564 Foot rest base plate left hand
1
1
1
15 3567 Foot rest base plate right hand
1
1
1
16 3563 Foot rest
2
2
2
17 3569 Bolt M 8x58x70
2
2
2
18 3568 Foot rest return spring left hand
1
1
1
19 3565 Spacer Bush
2
2
2
20 1692 Self locking nut NM 8 Din 980
2
2
2
21 3566 Foot rest return spring right hand
1
1
1
22 1655 Socket screw M 10x25 Din 6912
4
4
4
23 5090 Brake pedal
1
1
1
24 5093 Bushing for brake pedal
1
1
1
25 1500 Hexagon screw M 6x40 Din 931
1
1
1
26 1732 Washer B 6.4 Din 125
2
2
2
27 1690 Lock nut NM 6 Din 980
1
1
1
28 1667 Hexagon nut M 6 din 934
2
2
2
29 1570 Hexagon screw M 6x25 Din 933
1
1
1
30 1732 Washer B 6.4 Din 125
1
1
1
31 1690 Lock nut NM 6 Din 980
1
1
1
32 5089 Rear brake rod
1
1
1
33 242 Spring
1
1
1
34 244 Nipple
1
1
1
35 243 Wing nut
1
1
1
36 237 Clamp
1
1
1
37 236 Spring
1
1
1
38 1527 Cylinder head screw M 4x10 Din 84
1
1
1
39 1702 Spring washer B 6 Din 127
1
1
1
40 1665 Hexagon nut M 6 Din 934
1
1
1
41 3505 Chain guide cpl
1
1
1
42 3506 Rear brake stopper arm
1
1
1
43 3092 Chain guide plate right hand
1
1
1
44 3093 Chain guide plate left hand
1
1
1
45 3094 Sliding rollers
3
3
3
46 1539 Head screw M 6x40 Din 84
2
2
2
47 1550 Head screw M 6x30 Din 84
1
1
1
48 1690 Hexagon nut NM 6 Din 980
3
3
3
49 1652 Socket screw M 8x20 Din 6912
1
1
1
50 1734 Washer B 8.4 Din 125
1
1
1
51 1692 Hexagon nut NM 8 Din 980
1
1
1
52 3944 Shocks cpl  (Girling gas shocks)
2
2
2
53 3945 Spring 7.5 (black)
2
2
2
53.1 5075 Spring 7.75 (red)
2
2
2
54 1594 Hexagn screw M 8x40 Din 931
4
4
4
55 1734 Washer B 8.4 Din 125
8
8
8
56 1692 Hexagon nut NM 8 Din 980
4
4
4
56.1 5201 Rubber bush 6454 1661
4
4
4
56.2 5202 Bush 7052 0708
4
4
4
57 3697 Support for cylinder
1
-
-
58 3781 Support for cylinder
-
1
1
59 1589 Hexagon screw M 8x20 Din 933
1
1
1
60 1749 Washer A 8.4 Din 9021
2
2
2
61 1714 Spring washer B 8 Din 137
3
3
3
62 78 Hexagon nut N 8 Din 6330
3
3
3
63 1592 Hexagon screw M 8x30 Din 933
2
2
2
64 1626 Hexagon screw M 10x1.25x60 Din 960
2
2
2
65 1715 Spring washer B 10 Din 137
4
4
4
66 1667 Hexagon nut M 6 Din 934
1
1
1
67 5031 Lock nut VM 10x1.25 Din 980
2
2
2
68 1599 Hexagon screw M 8x60 Din 931
1
1
1
69 1749 Washer B 8.4 Din 9021
2
2
2
70 1714 Spring washer B 8 Din 137
2
2
2
71 78 Hexagon nut M 8 Din 6330
1
1
1
72 3182 Flange for outside air box
1
1
1
73 3183 Air box ring
1
1
1
74 2485 Rubber ring for filter box
1
1
1
75 3758 Hexagon bolt  M 6x130x35
1
1
1
76 3181 Foam filter
1
1
1
77 3164 Air filter body
1
1
1
78 3184 Spacer tube
1
1
1
79 3805 Cover for air filter
1
1
1
80 2708 Rubber washer
1
1
1
81 1750 Washer 6.4 Din 9021
1
1
1
82 1690 Hexagon nut NM 6 Din 980
1
1
1
83 348 Clamp
1
1
1
84 3958 Air box
1
1
1
85 1570 Hexagon screw M 6x25 Din 933
2
2
2
86 1732 Washer B 6.4 Din 125
2
2
2
87 3529 Washer
2
2
2
87.1 2708 Rubber washer
2
2
2
87.2 1750 Washer 6.4 Din 9021
2
2
2
88 1690 Hexagon nut NM 6 Din 980
2
2
2
89 1572 Hexagon screw M 6x35 Din 931
2
2
2
90 1750 Washer 6.4 Din 9021
4
4
4
91 2708 Rubber washer
2
2
2
91.1 5029 Spacer washer
2
2
2
92 1690 Nut NM 6 Din 980
2
2
2
93 5205 Side panel right hand
1
1
1
94 5206 Side panel left hand
1
1
1
95 3711 Plastic screw M 6x22
6
6
6
96 2708 Rubber washer
8
8
8
97 1750 Washer 6.4 Din 921
2
2
2
98 1690 Hexagon nut NM 6x18 Din 933
2
2
2
98.1 5029 Spacer washer
2
2
2
99 33 Rear fender (red)
1
1
1
100 1568 Hexagon screw M 6x18 Din933
2
2
2
101 1732 Washer B 6.4 Din 125
2
2
2
102 2708 Rubber washer
2
2
2
102.1 1750 Washer 6.4 Din 125
2
2
2
103 1690 Hexagon nut NM 6 Din 980
2
2
2
104 5192 Seat cpl (low)
1
1
1
104.1 5200 Seat cpl (high)
(1)
(1)
(1)
105 286 Clamp holder for seat
1
1
1
106 1812 Counter sunk screw M 6x16 Din 964
4
4
4
107 5197 Seat bracket
1
1
1
108 1734 Washer B 8.4 Din 125
2
2
2
108.1 1947 Washer 8,4 Din 9021
2
2
2
109 1692 Hexagon nut NM 8 Din 980
2
2
2
109.1 1588 Hexagon screw M 8x18 Din 933
2
2
2
110 5340 Fuel tank aluminium MC
1
1
1
110.1 5341 Fuel tank aluminium GS
(1)
(1)
(1)
111 3520 Maico emblem left hand
1
1
1
112 3521 Maico emblem right hand
1
1
1
113 3429 Fuel tank cap
1
1
1
114 2831 Gasoline tap
1
1
1
115 3523 Gasoline hose
1
1
1
116 2832 Hose clip
2
2
2
117 5342 Screw cap for fuel tank
1
1
1
118 5243 Sealing ring
1
1
1
119 5344 Tank mounting rubber
2
2
2
120 3527 Rubber pad for tank
2
2
2
121 3866 Moulded rubber mount
2
2
2
122 1604 Hexagon screw M 8x90 Din 931
1
1
1
123 1734 Washer B 8,4 Din 9021
2
2
2
124 1692 Hexagon nut NM 8 Din 980
1
1
1
125 5345 Rubber washer
1
1
1
126 5346 Rubber pressure ring
1
1
1
126.1 5347 Tension bush
1
1
1
126.2 1749 Washer 8,4 Din 9021
1
1
1
126.3 1591 Hexagon screw M 8x25 Din 933
1
1
1
127 1567 Hexagon screw M 6x16 Din 933
2
2
2
128 1704 Lock washer B 6 Din 127
2
2
2
129 5348 Spacer bush for tank
2
2
2
130 3517 Exhaust system cpl
-
1
1
131 5160 Tension Spring
1
1
1
132 896 Asbestos cord
1
1
1
133 1595 Hexagon screw M 8x45 Din 931
1
1
1
134 5216 Exhaust system cpl
1
-
-
135 1735 Washer A 8.4 Din 125
2
2
2
136 1692 Hexagon nut NM 8 Din 980
1
1
1
137 5308 Exhaust brace
1
1
1
138 1567 Hexagon screw M 6x16 Din 933
2
2
2
139 1732 Washer B 6.4 Din 125
4
4
4
140 1690 Hexagon nut NM 6 Din 980
2
2
2
141 1571 Hexagon screw M 6x30 Din 931
2
2
2
142 1704 Spring washer B 6 Din 127
2
2
2
143 3516 End cap
-
1
1
144 3557 Sound proofing material
-
1
1
145 5203 Splash guard
1
1
1
146 1124 Ignition coil
1
1
1
147 605 Ground cable
1
1
1
148 589 High tension lead
1
1
1
149 599 Cable plug
1
1
1
150 600 Rubber sleeve
1
1
1
151 601 Rubber sleeve
2
2
2
152 1530 Head screw M 5x25 Din 84
1
1
1
153 1689 Hexagon nut NM 5 Din 980
2
2
2
154 1567 Hexagon screw M 6x16 Din 933
2
2
2
155 1750 Washer B 6,4 Din 9021
2
2
2
156 1732 Washer B 6,4 Din 125
2
2
2
157 1690 Hexagon nut NM 6 Din 980
2
2
2
158 1567 Hexagon screw M 6x16 Din 933
2
2
2
159 1750 Washer 6,4 Din 9021
2
2
2
160 1732 Washer B 6,4 Din 125
2
2
2
160.1 1690 Hexagon Nut NM 6 Din 980
2
2
2
160.2 5156 End cap
1
-
-
160.3 5155 Sound proofing material
1
-
-
