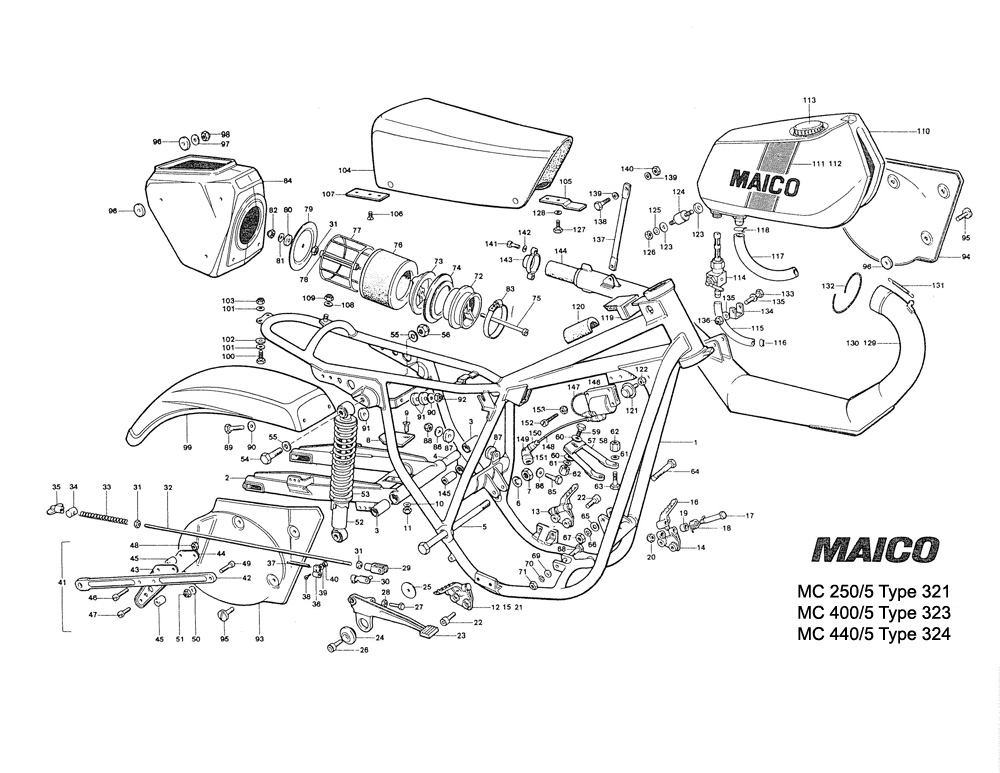

751/2frame

Picture Part Description
Quantity
No. No.
250
400
440
1 3648 Frame cpl
1
1
1
2 3490 Swing arm cpl
1
1
1
3 108 Silent bloc
2
2
2
4 3482 Spacer tube for swing arm
1
1
1
5 3491 Swing arm spindle
1
1
1
6 1754 Washer
1
1
1
7 111 Nut for swing arm spindle M 14x1.5
1
1
1
8 3488 Swing arm plastic pad
1
1
1
9 1812 Head screw M 6x16 Din 964
2
2
2
10 1732 Washer B 6.5 Din 125
2
2
2
11 1690 Hexagon nut M 6 Din 985
2
2
2
12 3779 Foot rest right hand cpl
1
1
1
13 3780 Foot rest left hand cpl
1
1
1
14 3564 Foot rest base plate left hand
1
1
1
15 3567 Foot rest base plate right hand
1
1
1
16 3563 Foot rest
2
2
2
17 3569 Bolt M 8x58x70
2
2
2
18 3568 Foot rest return spring left hand
1
1
1
19 3565 Bush
2
2
2
20 1682 Self locking nut M 8 Din 985
2
2
2
21 3566 Foot rest return spring right hand
1
1
1
22 1655 Socket screw M 10x25
4
4
4
23 539 Brake pedal alloy
1
1
1
24 540 Outside collar for brake pedal
1
1
1
25 543 Washer for brake pedal
1
1
1
26 1646 Socket screw M 8x30 Din 912
1
1
1
27 1570 Hexagon screw M 6x25 Din 933
1
1
1
28 1667 Hexagon nut M 6 Din 934
1
1
1
29 241 Fork joint
1
1
1
30 250 Bolt
1
1
1
31 1667 Hexagon nut M 6 Din 934
3
3
3
32 3223 Brake rod
1
1
1
33 242 Spring
1
1
1
34 244 Nipple
1
1
1
35 243 Wing nut
1
1
1
36 237 Clamp
1
1
1
37 236 Spring
1
1
1
38 1527 Cylinder head screw
1
1
1
39 1702 Spring washer B 8 Din 127
1
1
1
40 1667 Hexagon nut M 6 Din 934
1
1
1
41 3505 Chain guide cpl
1
1
1
42 3506 Rear brake stopper arm
1
1
1
43 3092 Chain guide plate right hand
1
1
1
44 3093 Chain guide plate left hand
1
1
1
45 3094 Rollers
3
3
3
46 1594 Cylinder head screw M 6x40 Din 84
2
2
2
47 1550 Cylinder head screw M 6x30 Din 84
1
1
1
48 1690 Hexagon nut M 6 Din 985
3
3
3
49 1652 Hexagon nut M 8x20 Din 6912
1
1
1
50 1734 Washer B 8.4 Din 125
1
1
1
51 1692 Hexagon nut M 8 Din 985
1
1
1
52 2600 Koni shocks (without springs)
2
2
2
53 2409 Spring
2
2
2
54 1594 Hexagon nut M 8x40 Din 931
4
4
4
55 1734 Washer B 8.4 Din 125
8
8
8
56 1692 Hexagon nut M 8 Din 985
4
4
4
57 3697 Support for cylinder
1
-
-
58 3781 Support for cylinder
-
1
1
59 1589 Hexagon screw M 8x20 Din 933
1
1
1
60 1749 Washer
2
2
2
61 1714 Spring washer B 8 Din 137
3
3
3
62 78 Hexagon nut M 8 Din 6330
3
3
3
63 1592 Hexagon nut M 8x30 Din 933
2
2
2
64 1626 Hexagon screw M 10x1.25x60
2
2
2
65 1735 Washer B 10 Din 125
2
2
2
66 1721 Toothed washer A 10.5 Din 6797
2
2
2
67 1678 Hexagon nut M 10x1.25 Din 6797
2
2
2
68 1599 Hexagon screw M 8x60 Din 125
1
1
1
69 1734 Washer B 8.4 Din 125
1
1
1
70 1720 Toothed washer A 8.4 Din 6797
1
1
1
71 78 Hexagon nut M 8 Din 6330
1
1
1
72 3182 Flange for air box outside
1
1
1
73 3183 Air box ring
1
1
1
74 2485 Rubber ring for filter box
1
1
1
75 3758 Cylinder screw M 6x130 Din 84
1
1
1
76 3181 Foam filter
1
1
1
77 3164 Air filter body
1
1
1
78 3184 Spacer tube
1
1
1
79 342 Cover for air filter
1
1
1
80 126 Rubber washer
1
1
1
81 3730 Washer
1
1
1
82 1690 Hexagon nut M 6 Din 985
1
1
1
83 348 Clamp
1
1
1
84 3180 Air box
1
1
1
85 1569 Hexagon screw M 6x20
2
2
2
86 3730 Washer
4
4
4
87 126 Rubber washer
4
4
4
88 1667 Nut M 6 Din 934
2
2
2
89 1571 Hexagon screw M 6x30
2
2
2
90 3730 Washer
4
4
4
91 126 Rubber washer
6
6
6
92 1667 Nut M 6 Din 934
2
2
2
93 3709 Number plate right hand
1
1
1
94 3710 Number plate left hand
1
1
1
95 3711 Flat head screw M 6x22
6
6
6
96 126 Rubber washer
12
12
12
97 3730 Washer
6
6
6
98 1667 Hexagon nut M 6 Din 934
6
6
6
99 141 Rear fender
1
1
1
100 1568 Hexagon screw M 6x18 Din 933
2
2
2
101 1732 Washer B 6.4 Din 125
4
4
4
102 126 Rubber washer
2
2
2
103 1690 Hexagon nut M 6 Din 985
2
2
2
104 3285 Seat cpl
1
1
1
105 286 Clamp holder for seat
1
1
1
106 1812 Oval head screw
2
2
2
107 287 Seat holding plate
1
1
1
108 1734 Washer B 8.4 Din 125
1
1
1
109 1692 Hexagon nut M 8 Din 985
1
1
1
110 3519 Tank
1
1
1
111 3520 Maico Emblem left hand
1
1
1
112 3521 Maico emblem right hand
1
1
1
113 3429 Tank cap
1
1
1
114 2831 Fuel cock
1
1
1
115 3523 Fuel line
1
1
1
116 2832 Fuel line clip
2
2
2
117 3524 Fuel line
1
1
1
118 3525 Fuel line clip
1
1
1
119 3526 Tank mount rubber
1
1
1
120 3527 Rubber pad for tank
2
2
2
121 3528 Moulded rubber mount
2
2
2
122 1690 Hexagon nut M 6 Din 985
2
2
2
123 3529 Washer
4
4
4
124 1062 Moulded rubber mount
2
2
2
125 1732 Washer B 6.4 Din 125
2
2
2
126 1690 Hexagon nut M 6 Din 985
4
4
4
127 1567 Hexagon screw M 6x16 Din 933
2
2
2
128 1704 Spring washer B 6 Din 127
2
2
2
129 3612 Exhaust system cpl
1
-
-
130 3517 Exhaust system cpl
-
1
1
131 189 Tension spring
1
1
1
132 896 Asbestos cord
1
1
1
133 1595 Hexagon screw M 8x45 Din 931
1
1
1
134 3514 Exhaust strap
1
1
1
135 1734 Washer B 8.4 Din 125
2
2
2
136 1692 Hexagon nut M 8 Din 985
1
1
1
137 3611 Exhaust brace
1
1
1
138 1567 Hexagon screw M 6x16 Din 933
2
2
2
139 1732 Washer B 6.4
4
4
4
140 1690 Hexagon nut M 6 Din 985
2
2
2
141 1550 Cylinder head screw M 6x30 Din 84
2
2
2
142 1704 Spring washer B 6 Din 127
2
2
2
143 3516 End piece
1
1
1
144 3557 Exhaust packing
1
1
1
145 3214 Silent bloc
1
1
1
146 1124 Ignition coil
1
1
1
147 605 Ground cable
1
1
1
148 589 High tension lead
1
1
1
149 599 Cable plug
1
1
1
150 600 Rubber sleeve
2
2
2
151 601 Rubber sleeve
1
1
1
152 1530 Cylinder head screw M 5x25 Din 84
2
2
2
153 1689 Hexagon nut M 5 Din 985
2
2
2
