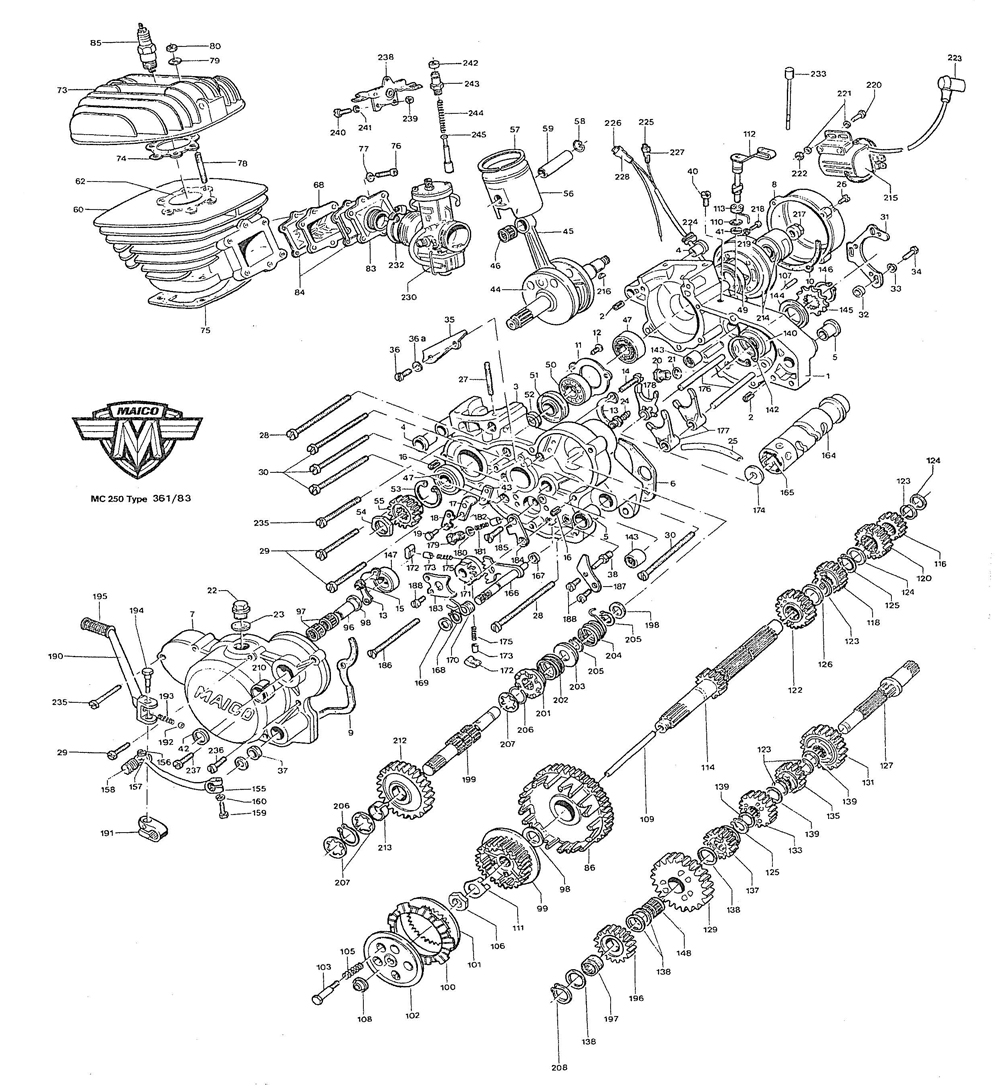

83 250 Engine



Picture Part Description
MC
MC
No. No.
250
490
1 8018 Engine case right
1
-
8027 Engine case right
-
1
2 1997 Internal ring
2
2
3 8020 Engine case left
1
-
8026 Engine case left
-
1
4 1995 Fixing bush
4
4
5 1994 Ocillant bush
2
2
6 8021 Engine case gasket
1
-
8030 Engine case gasket
-
1
7 8024 Clutch cover
1
1
8 1991 Ignition case cover
1
1
9 8023 Clutch case gasket
1
1
10 1989 Ignition case gasket right
1
1
11 1988 Bearing cover plate
1
1
12 1795 Counter sunk screw M 5x8 Din 965
3
3
13 1987 Bearing cover plate
2
2
14 1536 Cyllinder screw M 6x25 Din 84
2
2
15 1690 Securing nut NM 6 Din 980
4
4
16 1831 Tension pin 8x10 Din 7346
2
2
17 8009 Washer
1
1
18 8010 Flat washer
1
1
19 1569 Hexagon screw M 6x20 Din 933
2
2
20 895 Magneto screw cap
1
2
21 410 Seal ring A 20x24 Din 7603
1
1
22 408 Screw cap M 20x1.5 Din 910
1
1
23 409 Seal ring Z 20x24 Din 7603
1
1
24 1985 Breather
1
1
25 253 Breather tube
X
X
26 1536 Cylinder screw M 6x25 Din 84
4
4
27 1772 Stud M 8x25 Din 835
4
-
1780 Stud M 8x25 Din 835
-
4
28 1545 Cylinder screw AM 6x80 Din 84
2
3
29 1541 Cylinder screw AM 6x50 Din 84
5
2
30 1519 Cylinder screw AM 6x75 Din 84
4
4
31 8011 Bracket
1
1
32 8012 Spacer bush
3
3
33 1510 Spacer ring B 6 Din 128
3
3
34 1571 Cylinder screw M 6x30 Din 931
3
3
35 8025 Oil guide plate
1
-
8031 Oil guide plate
-
1
36 1762 Oval head cylinder screw AM 5x10
2
2
36a 1171 Spring washer B 5 Din 137
2
2
37 1865 Seal ring AS 12x22x7
1
1
38 8014 Spring pin return spring
1
1
40 1526 Cylinder screw M 8x10 Din 84
1
1
41 8175 Seal ring
1
1
42 1866 Sealing ring
1
1
43 8016 Stop plate
1
-
44 8254 Crankshaft cpl
1
-
8284 Crankshaft cpl
-
1
4081 Crankshaft in exchange
1
-
4083 Crankshaft in exchange
-
1
45 4086 Connecting rod repair kit
1
-
4088 Connecting rod repair kit
-
1
46 424 Needle bearing 0-2
nB
nB
424 Needle bearing 2-4
nB
nB
424 Needle bearing 4-6
nB
nB
47 3795 Cylinder roller bearing NU 205 C 3
2
1
48 426 Cylinder roller bearing NU 305 C 3
-
1
49 8057 Radial sealing ring 25x42x9
1
-
3469 Radial sealing ring 25x52x9/01
-
1
51 547 Radial sealing ring 32x52x7/9
1
1
52 8260 Inner ring 25x31.45x17.5
1
-
8290 Inner ring 25x31.45x15
-
1
53 6305 Securing ring 52x2 Din 472
2
2
54 8255 Nut on crankshaft KW SW 32
1
1
55 8049 Crankshaft sprocket KW
1
-
8070 Crankshaft sprocket KW
-
1
56 8370 Piston cpl 66.97
1
-
8372 Piston cpl 67.17
1
-
8373 Piston cpl 67.37
1
-
8374 Piston cpl 67.57
1
-
8375 Piston cpl 67.77
1
-
8376 Piston cpl 67.97
1
-
6813 Piston cpl 86.44
-
1
6815 Piston cpl 86.64
-
1
6816 Piston cpl 86.84
-
1
6817 Piston cpl 87.04
-
1
6818 Piston cpl 87.24
-
1
6819 Piston cpl 87.44
-
1
57 523 Piston ring 67.00
1
-
6184 Piston ring 67.20
1
-
6187 Piston ring 67.40
1
-
2067 Piston ring 67.60
1
-
6189 Piston ring 67.80
1
-
6191 Piston ring 68.00
1
-
6814 Piston ring 86.50
-
1
6820 Piston ring 86.70
-
1
6821 Piston ring 86.90
-
1
6822 Piston ring 87.10
-
1
6823 Piston ring 87.30
-
1
6824 Piston ring 87.50
-
1
58 536 Circlip
2
2
59 8371 Wrist pin
1
-
535 Wrist pin
-
1
60 8218 Cylinder cpl
1
-
4172 Cylinder in exchange
1
-
8295 Cylinder cpl
-
1
4179 Cylinder in exchange
-
1
61 8302 Cylinder cpl with exhaust flange
-
1
62 8220 Cylinder bush
1
-
8297 Cylinder bush
-
1
63 6893 Exhaust flange
-
1
64 298 Exhaust adapter gasket
-
1
65 1704 Spring ring
-
4
66 1635 Inner Hexagon screw M 6x25
-
4
67 8298 Decompression valve cpl
-
1
68 6796 Reed valve cpl
1
1
69 6797 Reed valve
1
1
70 6798 Reed valve tongue
2
2
71 6799 Reed valve stop tongue
2
2
72 1877 Oval head screw M 3x8 Z 4 Din 7985
6
6
73 8221 Cylinder head
1
-
8301 Cylinder head
-
1
74 6792 Cylinder head gasket
1
-
7461 Cylinder head gasket
-
1
75 8222 Cylinder base gasket 0.3 Thick
nB
8223 Cylinder base gasket 0.5 Thick
nB
8224 Cylinder base gasket 0.7 Thick
nB
7462 Cylinder base gasket 0.3 Thick
nB
7463 Cylinder base gasket 0.5 Thick
nB
7464 Cylinder base gasket 0.7 Thick
nB
77 1510 Spring ring B 6 Din 128
1
1
78 2967 Stud
1
1
79 1734 Washer B 8,4 Din 125
1
1
80 1670 Hexagon screw M 8 Din 934
18
18
81 1735 Washer B 10.5 Din 125
1
1
82 1674 Hexagon nut M 10 Din 934
1
1
83 7470 Intake flange
1
-
7467 Intake flange
-
1
84 6810 Intake flange
2
2
85 603 Spark plug
1
1
86 8273 Clutch housing cpl
1
-
87 8274 Clutch housing
1
-
88 1416 Countersunk rivet 6x22 Din 661
6
-
89 8275 Clutch pinion
1
-
90 8101 Clutch housing cpl
-
1
91 8096 Clutch housing
-
1
92 8102 Rubber cushion
-
6
93 8094 Clutch pinion
-
1
94 8077 Cover plate
-
1
95 1420 Countersunk rivet 6x30 Din 661
-
6
96 8276 Inner ring
1
1
97 736 Needle cage
2
2
98 8277 Spacer bush
2
2
99 8100 Clutch body
1
1
100 8082 Outer disc
6
6
101 8083 Inner disc
5
5
102 8084 Pressure plate
1
1
103 8105 Pressure bolt
5
5
105 8106 Spring
5
-
8071 Spring
-
5
106 8278 Hexagon nut BM 16x1 Din 439
1
1
107 8091 Needle roller
1
1
108 8087 Ball bearing
1
1
109 8089 Pressure rod
3
3
110 8072 Washer 0 18
1
1
111 8092 Securing washer
1
1
112 8279 Clutch lever
1
1
113 8283 Clutch return spring
1
1
114 8228 Main shaft C 15 Z
1
-
115 8306 Main shaft F 15 Z
-
1
116 8229 2nd gear on mainshaft HW C 18 Z
1
-
117 8307 2nd gear on mainshaft HW F 18 Z
-
1
118 8230 3rd gear on mainshaft HW CD 21 Z
1
-
119 8340 3rd gear on mainshaft HW FL 1-21 Z
-
nB
8451 3rd gear on mainshaft HW FL 21 Z
-
nB
120 8231 4th gear on mainshaft HW CD 23 Z
1
-
121 8452 4th gear on mainshaft HW FK 23 Z
-
nB
8332 4th gear on mainshaft HW FK 24 Z
-
nB
122 8232 5th gear on mainshaft HW C 1-25 Z
1
-
123 8233 Circlip SW 21
4
-
124 8234 Thrust washer
2
-
125 8235 Securing ring A 21x1.2 Din 471
2
2
126 8253 Washer PS 18x25x1 Din 988
1
-
127 8237 Output shaft
1
-
128 8315 Output shaft
-
1
129 8238 1st gear on output shaft AW C 31 Z
1
-
130 8316 1st gear on output shaft AW F 31 Z
-
1
131 8239 2nd gear on output shaft AW CD 29 Z
1
-
132 8317 2nd gear on output shaft AW CD 28 Z
-
1
133 8240 3rd gear on output shaft AW C 26 Z
1
-
134 8329 3rd gear on output shaft AW FL 1-25 Z
-
nB
8453 3rd gear on output shaft AW FK 25 Z
-
nB
135 8241 4th gear on output shaft AW CD 24 Z
1
-
136 8335 4th gear on mainshaft AW F 23 Z
-
nB
8450 4th gear on mainshaft AW FK 23 Z
-
nB
137 8242 5th gear on mainshaft AW CD 1-22 Z
1
-
138 8243 Thrust washer
4
5
139 8234 Thrust washer
3
-
140 8121 Ball bearing 3205 2 RS C 3 2
1
1
142 6305 Securing ring J 52x2 Din 472
1
1
143 8247 Outer ring with needle cage RNA 18x26x13
2
2
144 8248 Spacer tube on output shaft AW
1
1
145 8249 Sprocket Z 12
nB
-
8250 Sprocket Z 13
nB
nB
8251 Sprocket Z 14
nB
nB
8252 Sprocket Z 15
nB
nB
8263 Sprocket Z 16
nB
nB
146 1879 Securing ring A 25x1.2 Din 471
1
1
147 8126 Ball bearing 6204 ZC 3 Din 625
1
1
148 8246 Needle cage K 18x22x13
1
1
149 8310 Thrust washer 21.5x31.5x1
-
4
150 8311 Thrust washer 18x24x1
-
1
151 8312 Inner ring 21.5xx25x13
-
2
152 8213 Needle cage K 25x29x13
*
2
153 8320 Needle cage K 18x24x12
-
1
154 8321 Spacer bush AW
-
1
155 8185 Gear change lever cpl
1
1
156 6588 Flat head screw
1
1
157 6589 Spring
1
1
158 6590 Rubber pedal
1
1
159 1569 Hexagon screw M 6x20 Din 933
1
1
160 1510 Sealing ring B 6 Din 128
1
1
161 8216 Shifting drum
-
1
162 8191 Shifting drum
1
-
163 8217 Shifting drum
-
1
164 8213 shifting drum
1
-
165 8194 Stud
1
1
166 8187 Shift shaft segment
1
1
167 1447 Washer 9x15x1 Din 988
1
1
168 1438 Securing ring A 12x1 Din 971
1
1
169 1421 Washer 12x18x1 Din 988
1
1
170 8195 Return spring
1
1
171 8184 Shifting crank
1
1
172 8197 Shifting cam
2
2
173 8198 Spring pin
2
2
174 8199 Washer
1
1
175 8200 Pressure spring
1
1
176 8201 Shift fork spindle
2
1
177 8214 Shifting fork AW
2
1
178 8215 Shifting fork HW
1
1
179 8204 Pin
1
1
180 410 Sealing ring A 14x18 Din 7603
1
1
181 8205 Pressure spring
1
1
182 8206 Pin
1
1
183 8207 Shifting cam cover plate
1
1
184 8208 Stop plate
1
1
185 1404 Countersunk screw M 6x10 Din 963
1
1
186 1823 Countersunk screw M 6x80 Din 963
1
1
187 8209 Securing plate
1
1
188 1439 Cylinder screw M 6x10 Din 84
4
4
189 8162 Kickstarter lever cpl
1
1
190 8163 Kickstarter lever
1
1
191 8164 Kickstarter joint
1
1
192 1874 Ball ) 7 din 5401
1
1
194 8165 Screw
1
1
195 656 Rubber pedal
1
1
196 8265 Idle gear on kickstarter
1
1
197 8266 Needle cage K 18x22x100
1
1
198 3723 Washer 1st gear
1
1
199 8267 Kickstarter shaft
1
1
201 8171 Ratchet gear
1
1
202 8172 Pressure spring for kickstarter gear
1
1
203 8173 Spring cup
1
1
204 8174 Kickstarter return spring
1
1
205 1427 Securing spring A 16x1 Din 471
2
2
206 8235 Securing spring A 21x1.2 Din 471
2
2
207 8176 Thrust washer
3
3
208 8268 Securing spring A 18x1.2 Din 471
1
1
210 8160 Bearing bush
1
1
211 8269 Ratchet gear on kickstarter cpl
1
1
212 8270 Ratchet gear on kickstarter
1
1
213 8177 Bearing bush
1
1
214 7599 Ignition system cpl without coil
1
-
3598 Ignition system cpl without coil
-
1
217 1123 Magneto nut
1
1
218 1630 Inner hexagon screw M 5x16 Din 912
3
3
219 1731 Washer B 5.3 Din 125
3
3
220 1567 Hexagon screw M 6x16 Din 933
2
2
221 1732 Washer B 6,4 Din 125
4
4
222 1690 Securing nut NM 6 Din 980
2
2
223 3610 Spark plug
1
1
224 3530 Cable sleeve
1
1
225 3576 Connector 6,3-1
1
1
226 3595 Connector 9,5-6
1
1
227 3596 Connector housing thin
1
1
228 3597 Connector housing wide
1
1
229 589 Ignition cable
X
X
230 8378 Carbuteror cpl V54-2  0 38
1
-
231 8325 Carbuteror cpl V54-2  0 40
-
1
232 683 Clamp
1
1
233 7997 Dip stick
1
1
234 449 Cup spring
1
1
235 1542 Cylinder screw AM 6x55 Din 84
1
1
236 1538 Cylinder screw AM 6x35 Din 84
1
1
237 1550 Cylinder screw AM 6x30 Din 84
2
2
238 6912 Choke lever
1
1
239 6914 Nut
2
2
240 6913 Screw
2
2
241 1509 Spring ring
2
2
242 6911 Rubber cap
1
1
243 6910 Choke housing
1
1
244 6909 Spring
1
1
245 6908 Choke piston
1
1
nB = As required
X Yard material

Copyright © 2008 www.maicoland.com.  All rights reserved.
