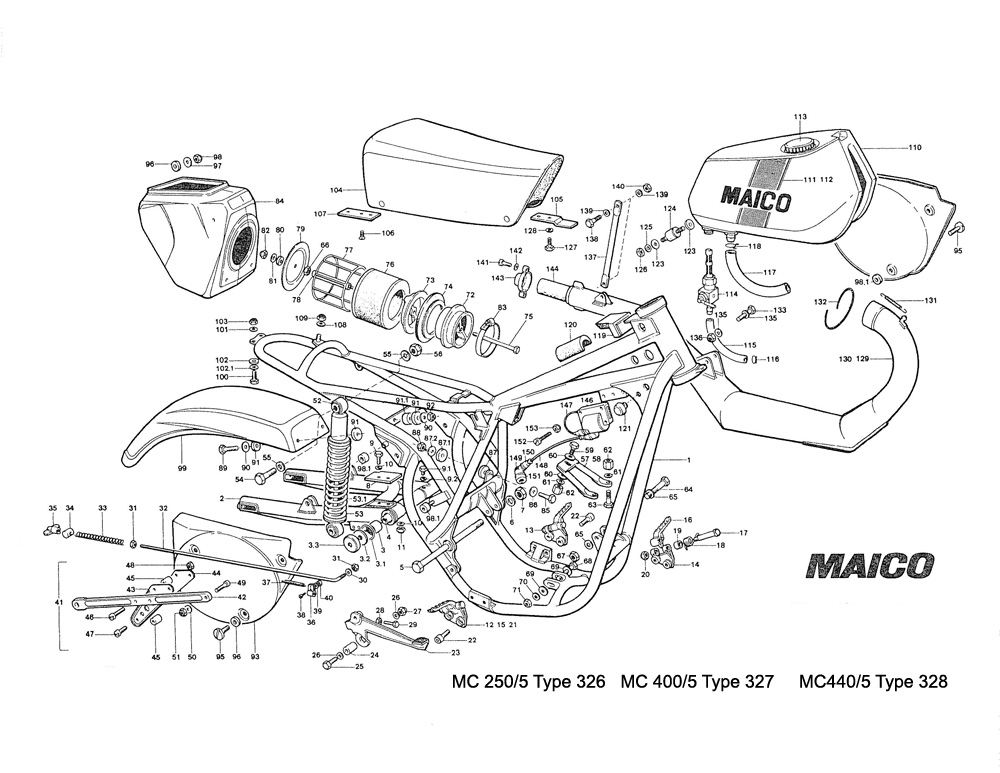

Picture | Part | Description | Quantity | ||
No. | No. | 250 |
400 |
440 |
|
1 | 3980 | Frame cpl | 1 |
1 |
1 |
2 | 3917 | Swing arm cpl | 1 |
1 |
1 |
3 | 3932 | Needle bearing HK 2030 | 2 |
2 |
2 |
3.1 | 80 | O ring | 2 |
2 |
2 |
3.2 | 5008 | Washer | 2 |
2 |
2 |
3.3 | 3934 | Dust cover | |||
4 | 3482 | Spacer tube for swing arm | 2 |
2 |
2 |
5 | 3937 | Swing arm spindle | 1 |
1 |
1 |
6 | 1718 | Washer | 1 |
1 |
1 |
7 | 5011 | Lock nut MM 14x15 | 1 |
1 |
1 |
8 | 3936 | Swing arm plastic pad | 1 |
1 |
1 |
9 | 1567 | Hexagon screw M 6x16 | 2 |
2 |
2 |
9.1 | 1554 | Hexagon screw M 6x6 | 1 |
1 |
1 |
9.2 | 407 | Sealing ring A x 10 Din 7603 | 1 |
1 |
1 |
10 | 1732 | Washer B 6.4 Din 125 | 4 |
4 |
4 |
11 | 1690 | Hexagon nut M 6 Din 985 | 2 |
2 |
2 |
12 | 3779 | Foot rest right hand cpl | 1 |
1 |
1 |
13 | 3780 | Foot rest left hand cpl | 1 |
1 |
1 |
14 | 3564 | Foot rest base plate left hand | 1 |
1 |
1 |
15 | 3567 | Foot rest base plate right hand | 1 |
1 |
1 |
16 | 3563 | Foot rest | 2 |
2 |
2 |
17 | 3569 | Bolt M 8x58x70 | 2 |
2 |
2 |
18 | 3568 | Foot rest return spring left hand | 1 |
1 |
1 |
19 | 3565 | Bush | 2 |
2 |
2 |
20 | 1692 | Self locking nut M 8 Din 980 | 2 |
2 |
2 |
21 | 3566 | Foot rest return spring right hand | 1 |
1 |
1 |
22 | 1655 | Socket screw M 10x25 | 4 |
4 |
4 |
23 | 5090 | Brake pedal | 1 |
1 |
1 |
24 | 5093 | Bearing bush | 1 |
1 |
1 |
25 | 1500 | Hexagon screw M 6x40 Din 931 | 1 |
1 |
1 |
26 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
27 | 1690 | Lock nut M 6 Din 980 | 1 |
1 |
1 |
28 | 1667 | Hexagon nut M 6 din 934 | 1 |
1 |
1 |
29 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
30 | 1732 | Washer B 6.4 Din 125 | 1 |
1 |
1 |
31 | 1690 | Lock nut M 6 Din 980 | 1 |
1 |
1 |
32 | 5089 | Brake rod | 1 |
1 |
1 |
33 | 242 | Spring | 1 |
1 |
1 |
34 | 244 | Nipple | 1 |
1 |
1 |
35 | 243 | Wing nut | 1 |
1 |
1 |
36 | 237 | Clamp | 1 |
1 |
1 |
37 | 236 | Spring | 1 |
1 |
1 |
38 | 1527 | Cylinder head screw M 4x10 Din 84 | 1 |
1 |
1 |
39 | 1702 | Spring washer B 6 Din 127 | 1 |
1 |
1 |
40 | 1665 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
41 | 3505 | Chain guide cpl | 1 |
1 |
1 |
42 | 3506 | Rear brake stopper arm | 1 |
1 |
1 |
43 | 3092 | Chain guide plate right hand | 1 |
1 |
1 |
44 | 3093 | Chain guide plate left hand | 1 |
1 |
1 |
45 | 3094 | Roller | 3 |
3 |
3 |
46 | 1539 | Cylinder head screw M 6x40 Din 84 | 2 |
2 |
2 |
47 | 1550 | Cylinder head screw M 6x30 Din 84 | 1 |
1 |
1 |
48 | 1690 | Hexagon nut M 6 Din 985 | 3 |
3 |
3 |
49 | 1652 | Socket screw M 8x20 Din 6912 | 1 |
1 |
1 |
50 | 1734 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
51 | 1692 | Hexagon nut M 8 Din 985 | 1 |
1 |
1 |
52 | 3944 | Shocks cpl (Girling gas shocks) | 2 |
2 |
2 |
53 | 3945 | Spring 7.5 (black) | 2 |
2 |
2 |
53.1 | 5075 | Spring 7.75 (red) | 2 |
2 |
2 |
54 | 1594 | Hexagn screw M 8x40 Din 931 | 4 |
4 |
4 |
55 | 1734 | Washer B 8.4 Din 125 | 8 |
8 |
8 |
56 | 1692 | Hexagon nut M 8 Din 985 | 4 |
4 |
4 |
57 | 3697 | Support for cylinder | 1 |
- |
- |
58 | 3781 | Support for cylinder | - |
1 |
1 |
59 | 1589 | Hexagon screw M 8x20 Din 933 | 1 |
1 |
1 |
60 | 1749 | Washer A 8.4 Din 9021 | 2 |
2 |
2 |
61 | 1714 | Spring washer B 8 Din 137 | 3 |
3 |
3 |
62 | 78 | Hexagon nut N 8 Din 6330 | 3 |
3 |
3 |
63 | 1592 | Hexagon screw M 8x30 Din 933 | 2 |
2 |
2 |
64 | 1626 | Hexagon screw M 10x1.25x60 Din 960 | 2 |
2 |
2 |
65 | 1715 | Spring washer B 10 Din 137 | 4 |
4 |
4 |
66 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
67 | 1531 | Lock nut M 10x1.25 Din 98 | 2 |
2 |
2 |
68 | 1599 | Hexagon screw M 8x60 Din 931 | 1 |
1 |
1 |
69 | 1749 | Washer B 8.4 Din 9021 | 2 |
2 |
2 |
70 | 1714 | Spring washer B 8 Din 137 | 1 |
1 |
1 |
71 | 78 | Hexagon nut M 8 Din 6330 | 1 |
1 |
1 |
72 | 3182 | Flange for outside air box | 1 |
1 |
1 |
73 | 3182 | Air box ring | 1 |
1 |
1 |
74 | 2485 | Rubber ring for filter box | 1 |
1 |
1 |
75 | 3758 | Cylinder screw M 6x130 | 1 |
1 |
1 |
76 | 3181 | Foam filter | 1 |
1 |
1 |
77 | 3164 | Air filter body | 1 |
1 |
1 |
78 | 3885 | Spacer tube | 1 |
1 |
1 |
79 | 3805 | Cover for air filter | 1 |
1 |
1 |
80 | 2708 | Rubber washer | 1 |
1 |
1 |
81 | 1750 | Washer | 1 |
1 |
1 |
82 | 1690 | Hexagon nut M 6 Din 985 | 1 |
1 |
1 |
83 | 348 | Clamp | 1 |
1 |
1 |
84 | 3958 | Air box | 1 |
1 |
1 |
85 | 1570 | Hexagon screw M 6x25 Din 933 | 2 |
2 |
2 |
86 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
87 | 3529 | Washer | 2 |
2 |
2 |
87.1 | 126 | Rubber washer | 2 |
2 |
2 |
87.2 | 1750 | Washer | 2 |
2 |
2 |
88 | 1690 | Lock nut M 6 Din 980 | 2 |
2 |
2 |
89 | 1572 | Hexagon screw M 6x35 Din 931 | 2 |
2 |
2 |
90 | 1750 | Washer | 4 |
4 |
4 |
91 | 2708 | Rubber washer | 6 |
6 |
6 |
91.1 | 5029 | Spacer bush | 2 |
2 |
2 |
92 | 1690 | Nut M 6 Din 980 | 2 |
2 |
2 |
93 | 3953 | Number plate right hand | 1 |
1 |
1 |
94 | 3955 | Number plate left hand | 1 |
1 |
1 |
95 | 3711 | Flat head screw M 6x22 | 6 |
6 |
6 |
96 | 2708 | Rubber washer | 8 |
8 |
8 |
97 | 1744 | Washer | 2 |
2 |
2 |
98 | 1690 | Hexagon nut M 6x18 Din 933 | 2 |
2 |
2 |
98.1 | 5029 | Spacer bush | 4 |
4 |
4 |
99 | 141 | Rear fender | 4 |
4 |
4 |
100 | 1568 | Hexagon screw M 6x18 Din933 | 1 |
1 |
1 |
101 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
102 | 2708 | Rubber washer | 2 |
2 |
2 |
102.1 | 1750 | Washer | 2 |
2 |
2 |
103 | 1690 | Hexagon nut M 6 Din 980 | 2 |
2 |
2 |
104 | 3285 | Seat cpl (with clamps) | 1 |
1 |
1 |
105 | 286 | Clamp holder for seat | 1 |
1 |
1 |
106 | 1812 | Oval head screw M 6x16 | 2 |
2 |
2 |
107 | 287 | Seat holding plate | 1 |
1 |
1 |
108 | 1734 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
109 | 1692 | Hexagon nut M 8 Din 980 | 1 |
1 |
1 |
110 | 3519 | Tank | 1 |
1 |
1 |
111 | 3520 | Maico emblem left hand | 1 |
1 |
1 |
112 | 3521 | Maico emblem right hand | 1 |
1 |
1 |
113 | 3429 | Tank cap | 1 |
1 |
1 |
114 | 2831 | Gasoline tap | 1 |
1 |
1 |
115 | 3523 | Gasoline hose | 1 |
1 |
1 |
116 | 2832 | Hose clip | 2 |
2 |
2 |
117 | 5324 | Gasoline hose | 1 |
1 |
1 |
118 | 3525 | Hose clip | 2 |
2 |
2 |
119 | 3526 | Tank mounting rubber | 1 |
1 |
1 |
120 | 3527 | Rubber pad for tank | 2 |
2 |
2 |
121 | 3866 | Moulded rubber mount | 2 |
2 |
2 |
122 | |||||
123 | 3529 | Washer | 4 |
4 |
4 |
124 | 1062 | Moulded rubber mount | 2 |
2 |
2 |
125 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
126 | 1690 | Hexagon nut M 6 Din 985 | 4 |
4 |
4 |
127 | 1567 | Hexagon screw | 2 |
2 |
2 |
128 | 1704 | Spring washer B 6 Din 127 | 2 |
2 |
2 |
129 | 3612 | Exhaust system cpl (end pipe 32mm) | (1) |
- |
- |
130 | 3517 | Exhaust system cpl | - |
1 |
1 |
131 | 189 | Tension spring | 1 |
1 |
1 |
132 | 896 | Asbestos cord | 1 |
1 |
1 |
133 | 1595 | Hexagon screw M 8x45 Din 931 | 1 |
1 |
1 |
134 | 5110 | Exhaust system cpl (end pipe 25mm) | 1 |
- |
- |
135 | 1749 | Washer A 8.4 Din 9021 | 2 |
2 |
2 |
136 | 1692 | Hexagon nut M 8 Din 980 | 1 |
1 |
1 |
137 | 3611 | Exhaust brace | 1 |
1 |
1 |
138 | 1567 | Hexagon screw | 2 |
2 |
2 |
139 | 1732 | Washer B 6.4 | 4 |
4 |
4 |
140 | 1690 | Hexagon nut M 6 Din 980 | 2 |
2 |
2 |
141 | 1550 | Cylinder head screw M 6x30 Din 84 | 2 |
2 |
2 |
142 | 1704 | Spring washer B 6 Din 127 | 2 |
2 |
2 |
143 | 3516 | End piece | 1 |
1 |
1 |
144 | 3557 | Exhaust packing | 1 |
1 |
1 |
145 | |||||
146 | 1124 | Ignition coil | 1 |
1 |
1 |
147 | 605 | Ground cable | 1 |
1 |
1 |
148 | 589 | High tension lead | 1 |
1 |
1 |
149 | 599 | Cable plug | 1 |
1 |
1 |
150 | 600 | Rubber sleeve | 2 |
2 |
2 |
151 | 601 | Rubber sleeve | 1 |
1 |
1 |
152 | 1530 | Cylinder head screw M 5x25 Din 84 | 2 |
2 |
2 |
153 | 1689 | Hexagon nut M 5 Din 985 | 2 |
2 |
2 |
