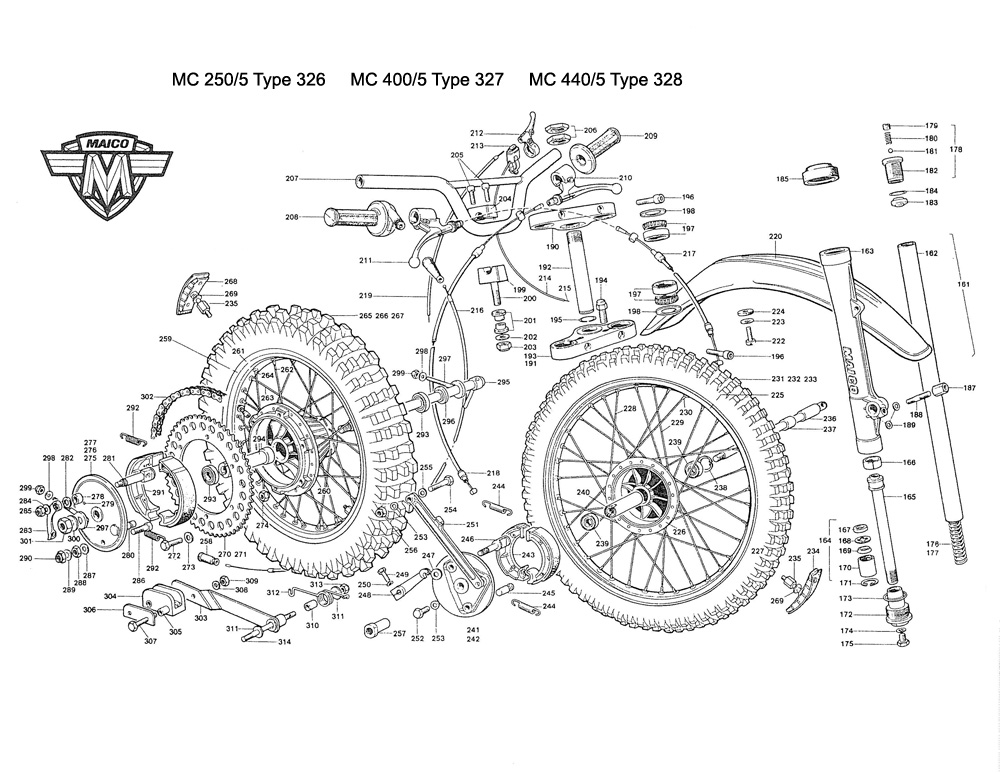

76chassis



Picture Part Description Quantity
No. No.
250
400
440
161 3914 Telescopic fork cpl
1
1
1
162 3790 Fork tube
2
2
2
163 3906 Fork slider
2
2
2
164 3912 Damper cpl
2
2
2
165 3908 Damper tube
2
2
2
166 3789 Damper piston ring
2
2
2
167 3913 Damper return buffer washer
2
2
2
168 3369 Valve seat
2
2
2
169 3368 Valve
2
2
2
170 3367 Damper insert
2
2
2
171 3366 Locking ring 34 c 1.5 Din 472
2
2
2
172 3365 Damper cone
2
2
2
173 80 O ring 29 x 2.5
2
2
2
174 430 Sealing ring A 8x14 Din 7603
2
2
2
175 1585 Hexagon screw M 8x10 Din
2
2
2
176 3915 Fork spring 4.75 hard (Marked red)
2
2
2
177 3915 Fork spring 4.6 soft (marked white)
2
2
2
178 3376 Breather screw cpl
2
2
2
179 1785 Stud
2
2
2
180 75 Valve spring
2
2
2
181 1873 Ball 6
2
2
2
182 3377 Breather screw
2
2
2
183 3378 Breather screw plug
2
2
2
184 80 O ring 29 x 2.5
2
2
2
185 3907 Wiper
2
2
2
186
187 78 Hexagon nut M 8 Din 6330
2
2
2
188 1772 Stud M 8x25 Din 835
2
2
2
189 1734 Washer B 8.4 Din 125
2
2
2
190 3381 Upper cross head
1
1
1
191 3371 Lower cross head cpl (with steering tube)
1
1
1
192 3373 Steering tube
1
1
1
193 3372 Lower cross head
1
1
1
194 226 Locking bolt
2
2
2
195 3375 Spring ring  A 26 Din 7993
1
1
1
196 1657 Socket screw M 10x40 Din 912
4
4
4
197 3297 Roller bearing
2
2
2
198 3296 Nilos ring
2
2
2
199 90 Handlebar clamp lower
2
2
2
200 1661 Socket screw M 10x60 Din 6912
2
2
2
201 15 Rubber buffer
4
4
4
202 1758 Washer
2
2
2
203 1693 Hexagon nut M 8x30 Din 912
2
2
2
204 88 Handlebar clamp upper
2
2
2
205 1646 Socket screw M 8x30 Din 912
2
2
2
206 3533 Hexagon nut
2
2
2
207 3784 Handlebar
1
1
1
208 2511 Twist grip
1
1
1
209 2512 Rubber grip
1
1
1
210 145 Clutch lever
1
1
1
211 146 Brake lever
1
1
1
212 148 Decompression lever
-
1
1
213 571 Kill button
1
1
1
214 2608 Isolation hose
1
1
1
215 2618 Cable
1
1
1
216 2456 Throttle cable
1
1
1
217 486 Brake cable
1
1
1
218 311 Clutch cable
1
1
1
219 305 Cable for decompressor
-
1
1
220 131 Front fender
1
1
1
221
222 1536 Cylinder head screw M 6x26 Din 84
4
4
4
223 1750 Washer A 6.4 Din 9021
4
4
4
224 2708 Rubber washer
4
4
4
225 2426 Front wheel cpl (with tire)
1
1
1
226 2420 Conical front drum
1
1
1
227 3497 Alum. Front rim 1.60x21"
1
1
1
228 2432 Front spokes short
18
18
18
229 2433 Front spokes long
18
18
18
230 210 Spoke nipple M 4
36
36
36
231 2003 Tire 3.00x21"
1
1
1
232 2002 Air tube 3.00x21"
1
1
1
233 167 Rim strap
1
1
234 168 Tire holder front cpl
1
1
1
235 289 Nut for tire holder
2
2
2
236 169 Front axle
1
1
1
237 2429 Distance bush
1
1
1
238 1853 Lock ring 35x1.5 Din 472
1
1
1
239 2427 Ball bearing 6202 RS din 625
2
2
2
240 2428 Spacer tube
1
1
1
241 2416 Front brake plate cpl
1
1
1
242 2417 Front brake plate
1
1
1
243 1322 Brake shoe
2
2
2
244 1323 Tension spring
2
2
2
245 2418 Pivot bolt
1
1
1
246 2419 Brake toggle
1
1
1
247 187 Rubber washer
1
1
1
248 1324 Front brake lever
1
1
1
249 1569 Hexagon screw M 6x20 Din 933
1
1
1
250 1704 Spring washer B 6 Din 1271
1
1
1
251 2424 Front brake rod
1
1
1
252 1589 Hexagon screw M 8x20 Din 933
1
1
1
253 1714 Spring washer B 8 Din 125
2
2
2
254 1594 Hexagon screw M 8x40 Din 931
1
1
1
255 1734 Washer B 8.4 Din 125
1
1
1
256 1692 Hexagon nut M 8 Din 985
1
1
1
257 2430 Threaded bush
1
1
1
258 1127 Hermetical cover
1
1
1
259 3785 Rear wheel cpl (with tire)
1
1
1
260 3278 Rear brake drum
1
1
1
261 3228 Alum. Akront rim 2.15x18"
1
1
1
262 3198 Rear spokes short
18
18
18
263 3199 Rear spokes long
18
18
18
264 210 Spoke nipple
36
36
36
265 2008 Tire 4.50x18"
1
1
1
266 2015 Air tube 4.50x18"
1
1
1
267 2005 Rim strap
1
1
1
268 2434 Tire holder rear
1
1
1
269 1734 Washer B 8.4 Din 125
2
2
2
270 3227 Sprocket 56T
1
1
1
271 288 Sprocket 52T
1
1
1
272 3280 Hexagon screw M 7x40 Din 933
6
6
6
273 1713 Spring washer B 7 Din 137
6
6
6
274 1691 Hexagon nut M 7 Din 985
6
6
6
275 3186 Rear brake plate cpl
1
1
1
276 3187 Rear brake plate
1
1
1
277 3188 Cover plate
1
1
1
278 183 Distance bush
1
1
1
279 1901 Oval head nail 3x8 Din 1476
1
1
1
280 3189 Pivot bolt
1
1
1
281 151 Brake toggle
1
1
1
282 187 Rubber washer
1
1
1
283 3190 Brake lever
1
1
1
284 1734 Washer B 8.4 Din 125
1
1
1
285 1692 Hexagon nut M 8 Din 985
1
1
1
286 3270 Socket screw M 10x40 Din 6912
1
1
1
287 1715 Washer B 10.5 Din 137
1
1
1
288 1674 Hexagon nut M 10 Din 934
1
1
1
289 1735 Washer B 10.5 Din 125
1
1
1
290 1693 Hexagon nut M 10 Din 985
1
1
1
291 188 Brake shoe
2
2
2
292 189 Tension spring
2
2
2
293 205 Ball bearing 6303 2 RS C3
2
2
2
294 3276 Spacer tube
1
1
1
295 3277 Rear axle
1
1
1
296 3196 Spacer bush
1
1
1
297 223 Chain adjuster
2
2
2
298 1734 Washer B 8.4 Din 125
2
2
2
299 1692 Hexagon nut M 8 Din 985
2
2
2
300 1739 Washer B17 Din 125
1
1
1
301 1683 Hexagon nut
1
1
1
302 3708 Chain with master link 5/8x1/4" 118 links
1
1
1
303 5010 Chain tension bar
1
1
1
304 5015 Guide rail for chain
1
1
1
305 5016 Spacer bush
2
2
2
306 5017 Plate
1
1
1
307 1580 Hexagon screw M 6x45 Din 933
2
2
2
308 1732 Washer B 6.4 Din 125
2
2
2
309 1690 Lock nut M 6 Din 980
2
2
2
310 5019 Bush
1
1
1
311 1749 Washer A 8.4 Din 9021
2
2
2
312 5020 Stem spring
1
1
1
313 1692 Lock nut M 8 Din 980
1
1
1
